Product Name
Rotary Parking Systems RPS 2.1T10
Independent automatic controlled car parking system that parks from 8 to 16 cars vertically in a space of 2 cars.
Parameters
Max. car weight
2150 kg
Runway width
2084 mm
Operation Interface
IC Card + HMI Touch screen
Equipment area
6945×5500 mm
Runway type
Almond steel plates
Motor power
11 Kw,380 V , 50 Hz/ 3Ph
Lift Mode
Conveyor sprocket shaft + Lifting Chain (Made of high strength corrosion resisting steel) corrosion resisting steel)
Standard Colors
RAL 7015 Slate grey & RAL 1028 Melon yellow
Features
- Motor driven, chain lifting system.
- Designed to park vehicles by vertically circulating cage in CW/CCW directions.
- The most space efficient parking solution as you can park up to 16 cars in small area
doesn’t exceed 2 cars. - Simple one-touch control and doesn’t require professional operator. Intelligent rotation
direction (in CW/CCW) to shorten entry / exit time. - PLC automatic control system, touch screen to call the required vehicle in one touch.
- Different models to park 8, 10, 12, 14 & 16 cars depending on available heights, car type
and customer request. - The standard finishing is sandblasting then painting 2 layers (primer & finish coat) with SAWA standard colors (RAL 7015 Slate grey & RAL 1028 Melon yellow).

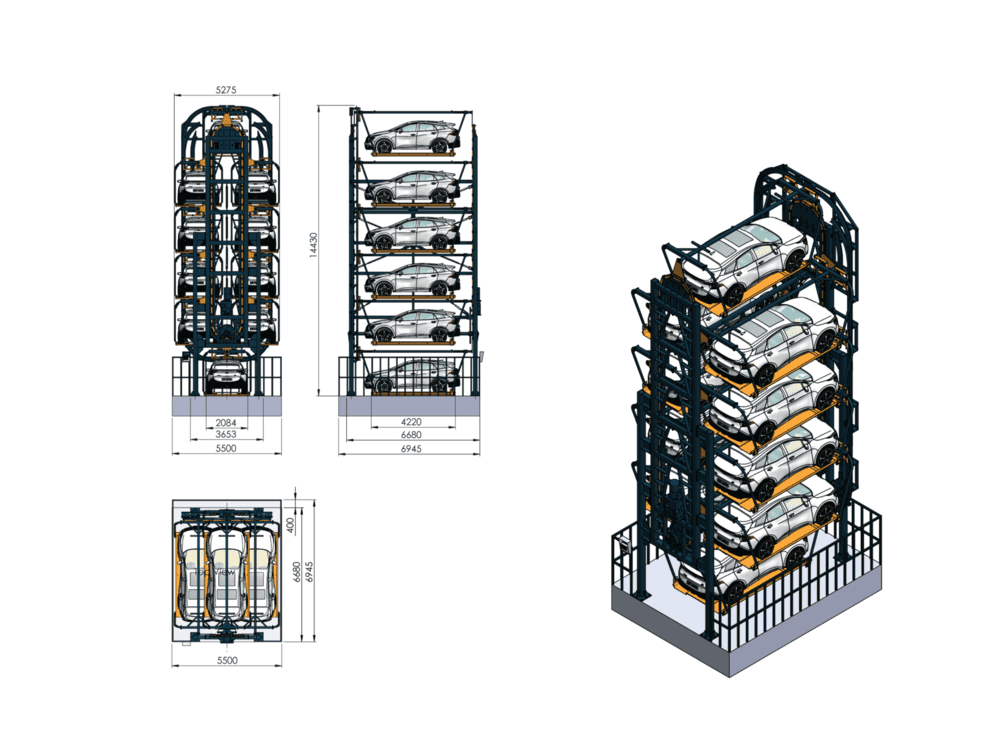

Drawing
