Puzzle Parking Systems in Modern Urban Developments
The rapid growth of urban populations and the increasing density of residential and commercial developments have created a critical demand for efficient parking solutions. Traditional parking layouts are no longer capable of meeting space limitations, operational efficiency, and sustainability requirements. As a result, Puzzle Parking systems have emerged as one of the most effective mechanical parking solutions for modern cities.
A puzzle parking system is designed to optimize available space by allowing vehicles to be moved vertically and horizontally within a structured grid. Unlike conventional parking, where drivers maneuver vehicles manually, puzzle systems rely on mechanical or hydraulic movement to rearrange cars efficiently. This approach significantly reduces land usage, eliminates the need for ramps, and enhances overall parking capacity.
In international markets such as Europe, where urban planning regulations and space constraints are particularly strict, puzzle parking systems have become a preferred solution. This article explores a customized tandem Puzzle Parking project designed for exporting to Italy, highlighting system configuration, technical specifications, advantages, cost considerations, and real-world applications.
Puzzle Parking System
Customized Puzzle Parking Tandem for 6 Cars Exported to Italy

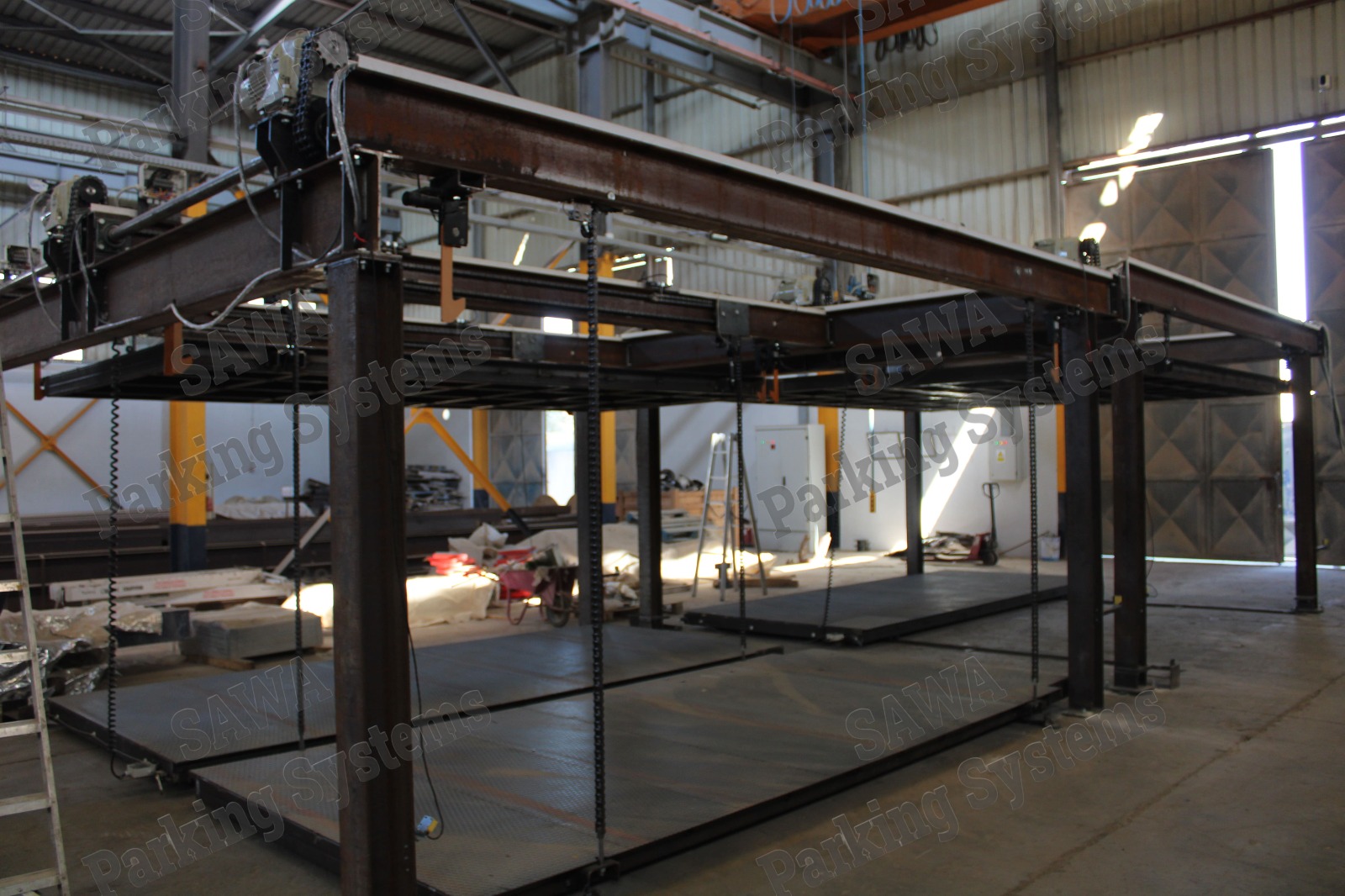

This project represents a customized puzzle parking tandem system designed specifically to accommodate six vehicles within a compact footprint. Developed and manufactured for export to Italy, the system reflects both European safety standards and project-specific functional requirements.

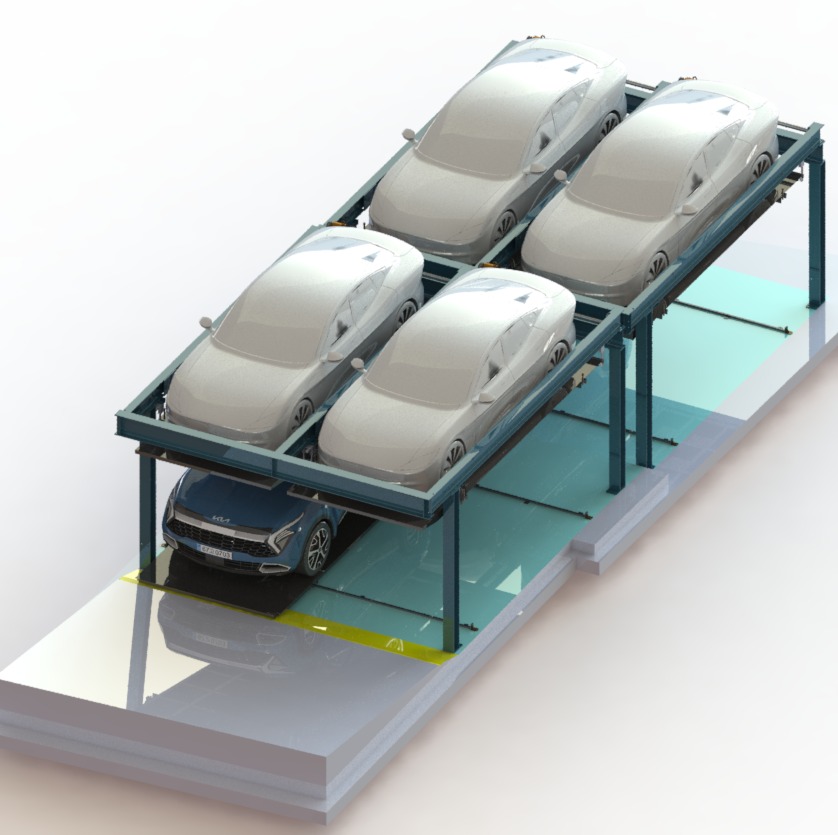

The configuration follows a tandem puzzle parking system, where there are 4 parking slots two behind the others with one direction entry/exit, we designed the puzzle parking tandem 6 cars to allow parking 3 cars in front and other 3 cars in behind of them and allow users to get cars independently by synchronized vertical and horizontal movement of platforms automatically controlled by PLC. This layout is particularly effective for residential buildings, private parking facilities, and boutique commercial developments where land availability is limited.
Key objectives of this project included:
- Maximizing parking capacity within a restricted space
- Ensuring smooth vehicle movement with minimal operational complexity
- Complying with European safety and performance standards
- Delivering a customized solution adapted to local site conditions
The final result is a compact yet highly efficient puzzle car parking system that demonstrates how customized mechanical parking solutions can successfully support international export projects.
How a Puzzle Parking System Works
A 2 levels puzzle parking system operates with multiple vertical levels and multiple horizontal bays. ground level has an empty parking space through which the outgoing car is passing when it is called from the top level. This process is performed by front-rear guide rails on which the platforms move horizontally. Top level platforms can only move vertically while the ground level platforms can only move horizontally to clear space for the upper platforms for entry and exit of cars.
In this customized tandem configuration:
- Two modules are installed in behind each others.
- Each module perform the horizontal and vertical movement.
- The two modules are automatically connected and synchronized so vehicles are rearranged automatically to free the required parking position.
Depending on project requirements, the system can be designed as:
- A two-levels puzzle parking system
- A multi-level semi-automated puzzle parking system
- A tandem puzzle parking system
The tandem logic allows multiple vehicles to be parked in series, further increasing efficiency without expanding the system footprint. This makes the puzzle type car parking system ideal for dense urban environments.
Technical Specifications and System Configuration
System Type
- Puzzle Parking Tandem Configuration
- Six parking spaces arranged vertically and horizontally
Movement Mechanism
- Vertical lifting via hydraulic cylinders
- Horizontal sliding through mechanical guide rails
Platform Design
- High-strength steel platforms
- Anti-slip surface treatment
- Designed to support standard passenger vehicles
Installation Options
- Above-ground installation
- Optional pit puzzle parking system configuration depending on site requirements
Safety Features
- Mechanical locking systems at each level
- Emergency stop controls
- Overload protection sensors
- Anti-fall safety mechanisms
The puzzle parking system dimensions are fully customizable, allowing the system to adapt to site-specific architectural constraints while maintaining optimal operational efficiency.
Advantages of Puzzle Parking Systems
The increasing adoption of puzzle parking systems worldwide is driven by a wide range of advantages:
1. Space Optimization
Puzzle systems significantly reduce the land required for parking by eliminating extra parking slots, ramps and driveways.
2. Cost Efficiency
Compared to constructing underground parking, the puzzle parking system cost is considerably lower, especially when factoring in excavation and structural expenses.
3. Flexible Configuration

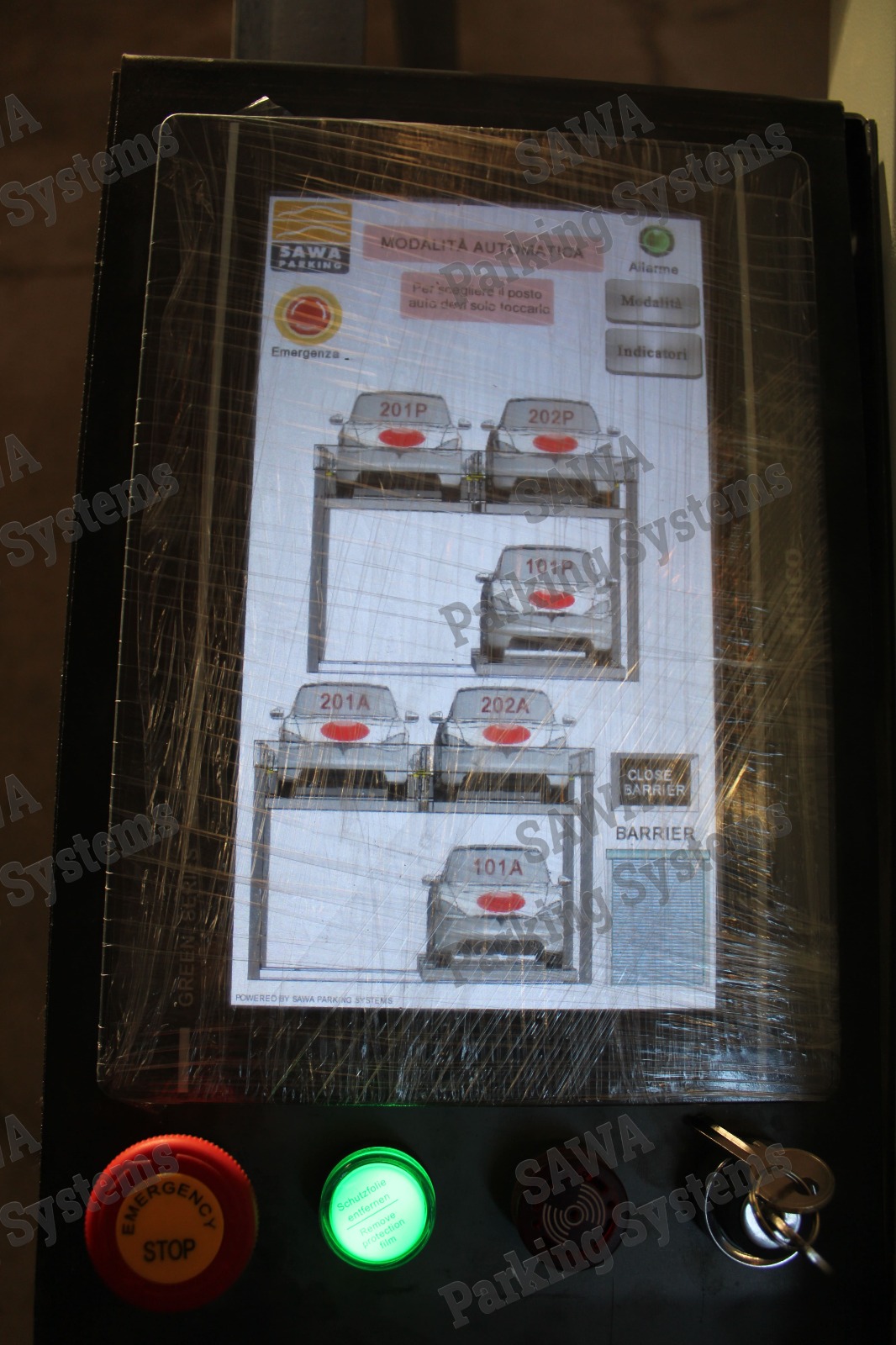

Puzzle systems can be customized in terms of capacity, dimensions, and movement logic, making them suitable for various applications. Also control and operation of puzzle parking system is easy and customizable through a user-friendly touch screen.
4. Enhanced Safety
With no internal vehicle circulation, the risk of accidents is reduced, improving user safety.
5. Sustainable Design
Reduced land usage and efficient energy consumption contribute to environmentally responsible development.
These advantages make puzzle lift parking systems a preferred solution for both residential and commercial projects.
Puzzle Parking System Cost and Economic Considerations
One of the most common questions raised by developers and consultants relates to puzzle parking system cost. While exact pricing depends on configuration, capacity, and customization level, puzzle systems are generally recognized as a cost-effective alternative to conventional parking structures.
Key Cost Factors
- Number of parking spaces
- Type of system (mechanical or hydraulic)
- Installation method (pit or non-pit)
- Safety and automation features
In markets such as the Middle East, demand for puzzle parking system cost in Egypt has increased due to rapid urban expansion and limited land availability. Puzzle systems offer a balanced solution between initial investment and long-term operational savings.
Additionally, documentation such as puzzle parking system PDF files and puzzle parking system video demonstrations are often used during the planning phase to evaluate system performance and layout efficiency.
Customization for European Export Standards
Exporting mechanical parking systems to Europe requires strict adherence to quality, safety, and performance standards. This customized project for Italy was designed with compliance in mind, ensuring compatibility with European regulations.
Key considerations included:
- Structural safety and load calculations
- Emergency systems and redundancy
- Precision manufacturing for long-term durability
- Adaptation to local electrical and control standards
As one of the experienced puzzle parking system manufacturers, the ability to deliver customized solutions that meet international requirements is essential for successful export projects.
Applications of Puzzle Parking Systems
The flexibility of puzzle type parking systems allows them to be applied across a wide range of environments:
Residential Buildings
Ideal for apartment complexes and private villas where space is limited.
Commercial Developments
Suitable for offices, hotels, and mixed-use buildings requiring efficient parking management.
Urban Infill Projects
Perfect for constrained plots in dense city centers.
International Export Projects
Adaptable designs make puzzle systems suitable for global markets, including Europe, the Middle East, and Asia.
The versatility of automated puzzle parking systems ensures that they can meet the evolving demands of modern urban infrastructure.
Related Puzzle Parking Solutions
For projects requiring scalable and proven Puzzle Parking configurations, explore advanced solutions designed for various capacity requirements.
Discover professional Puzzle Parking systems engineered for efficiency, safety, and long-term reliability.
To explore a complete portfolio of mechanical and automated parking solutions, visit our full range of Puzzle Parking systems designed for residential, commercial, and industrial applications.
These solutions complement project-based installations and provide flexibility across diverse parking environments.
Why Choose Sawa Parking for Puzzle Parking Systems
Selecting the right partner is critical for the success of any mechanical parking project. With extensive experience in designing, manufacturing, and exporting parking systems, Sawa Parking delivers reliable and customized puzzle car parking systems for global markets.
Key strengths include:
- European quality with affordable market prices
- Fast & cost-efficient shipping specially to Europe, The Gulf & Africa
- Immediate technical support
- EURO 1 Certificate – granting customs duty exemption on your side
- Seamless communication as we talk in different languages.
- Proven expertise in customized projects
From concept to execution, each puzzle type automated parking system is developed to meet specific project requirements while maintaining long-term operational efficiency.
Get a Customized Puzzle Parking Solution
If you are planning a residential, commercial, or international parking project and require a reliable Puzzle Parking solution, our engineering team is ready to assist.
Contact our specialists to request a customized puzzle parking system, technical consultation, or detailed project evaluation.
