Product Name
Car Lift – Geared Motor with Rack & Pinion
Motor driven car elevator that is used for lifting cars between different floors .
Parameters
Max. car weight
Up To 3000 kg
Lifting Hight
UP TO 10000 mm
Drive through
2200 mm
Packaging dimension
5400*2300*1000mm
Lock Release
Electric lock release
Rise/Drop Time
70 S / 60 S
Gross weight
5600kg INCLUDING GATES
Power Supply /Motor Capacity
380 V, 50 Hz , 3 Ph, 3 Kw
Standard Colors
RAL 7015 Slate grey & RAL 1028 Melon yellow
Protection Devices
Photo Cell Sensors – Electromagnetic Lock with hook release device
Country of Origin
Egypt
Electric voltage
380 V / 3 phase
Features
- Floor & wall mounted two post heavy duty car elevator to be installed inside the shaft.
- Customized design based on requested lifting height, lifting capacity and number of stops.
- Geared motor driven system through Rack & Pinion to achieve steady move of platform without vibration.
- Platform balancing is guaranteed by using wheels as a combined bearing inside C beams.
- Electric geared motor is mounted under the platform, connected with transmission shaft.
- Side barrier fences fixed on the platform deck sides to ensure safety and visibility.
- Operation through man on board kit fixed to side barrier & remote control.
- Thick reinforced steel platform minimizes deflection and maximizes stability.
- Ideal for lifting cars among ground, upper & lower levels at different heights.
- Electromagnetic lock to be engaged inside safety ladders fixed to side posts.
- The standard finishing is sandblasting then painting 2 layers (primer & finish coat) with SAWA standard colors (RAL 7015 Slate grey & RAL 1028 Melon yellow).

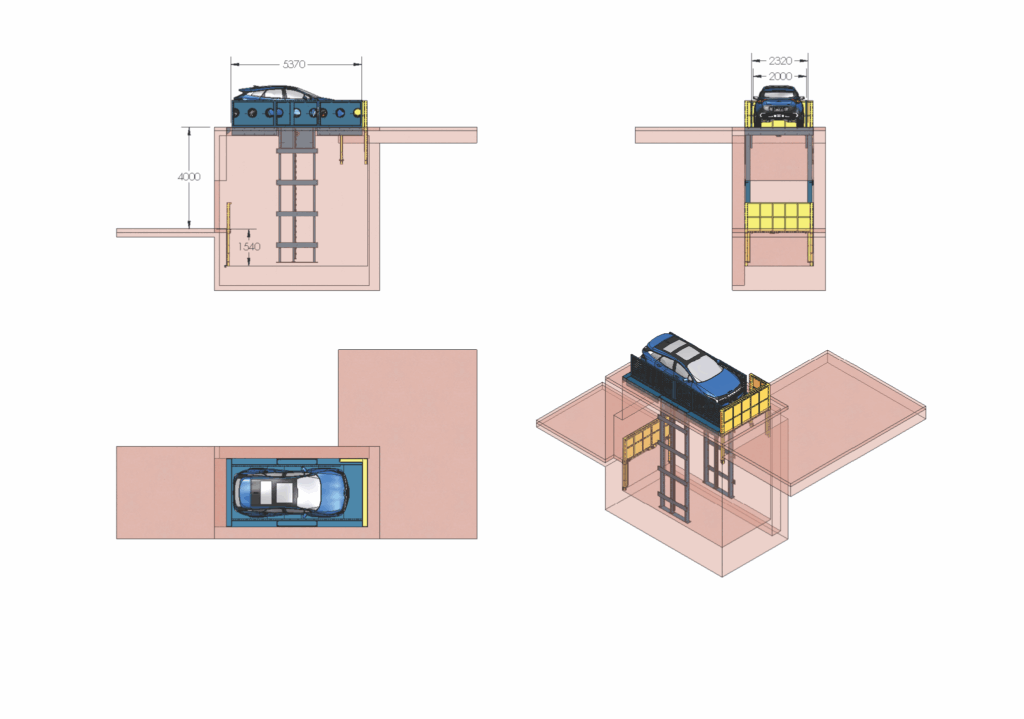

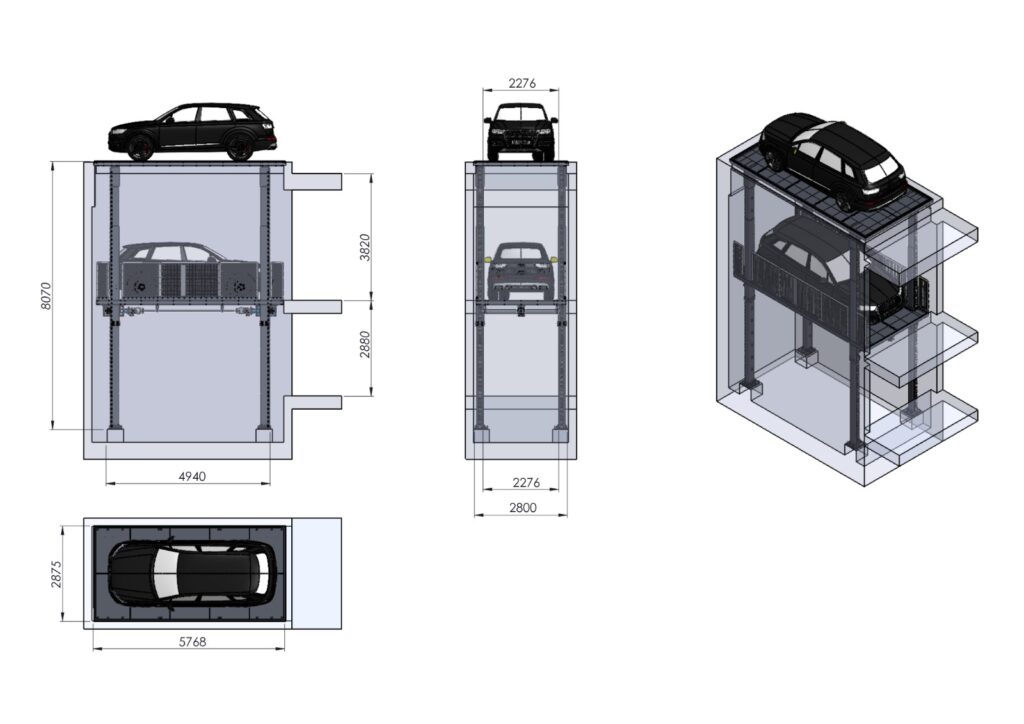

Drawing

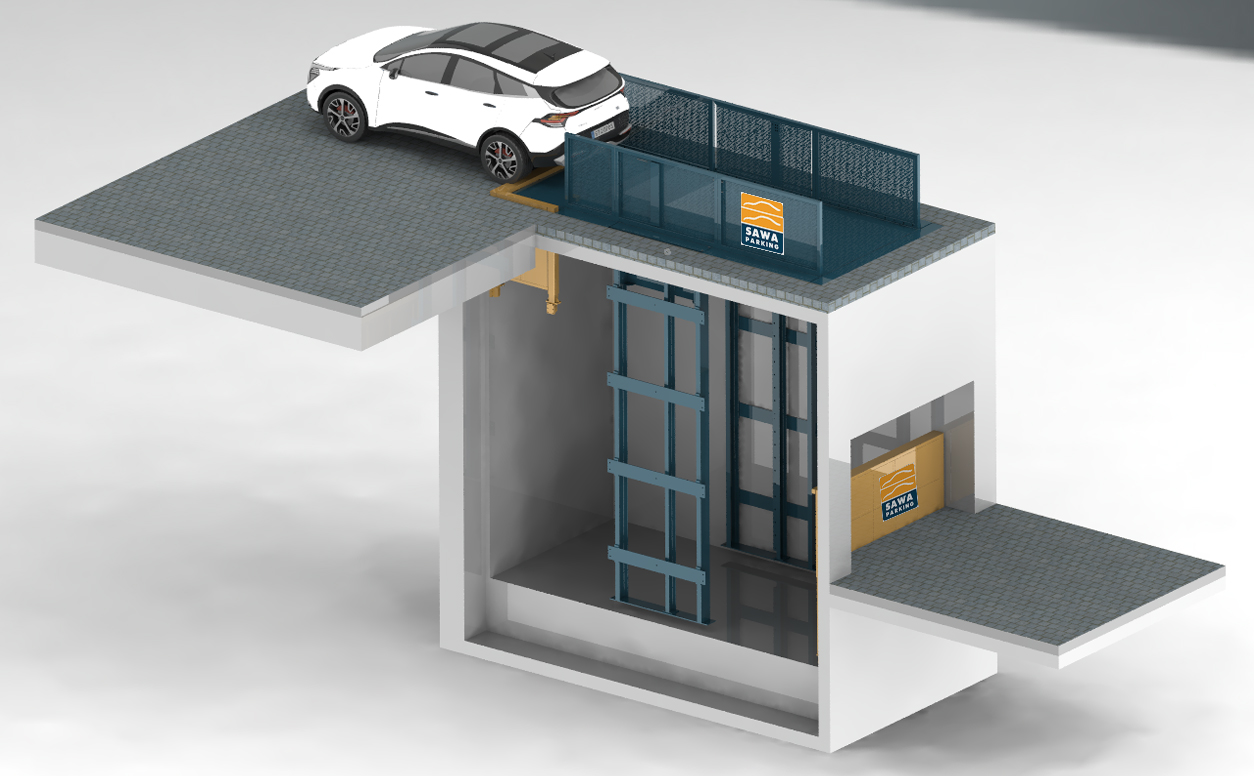

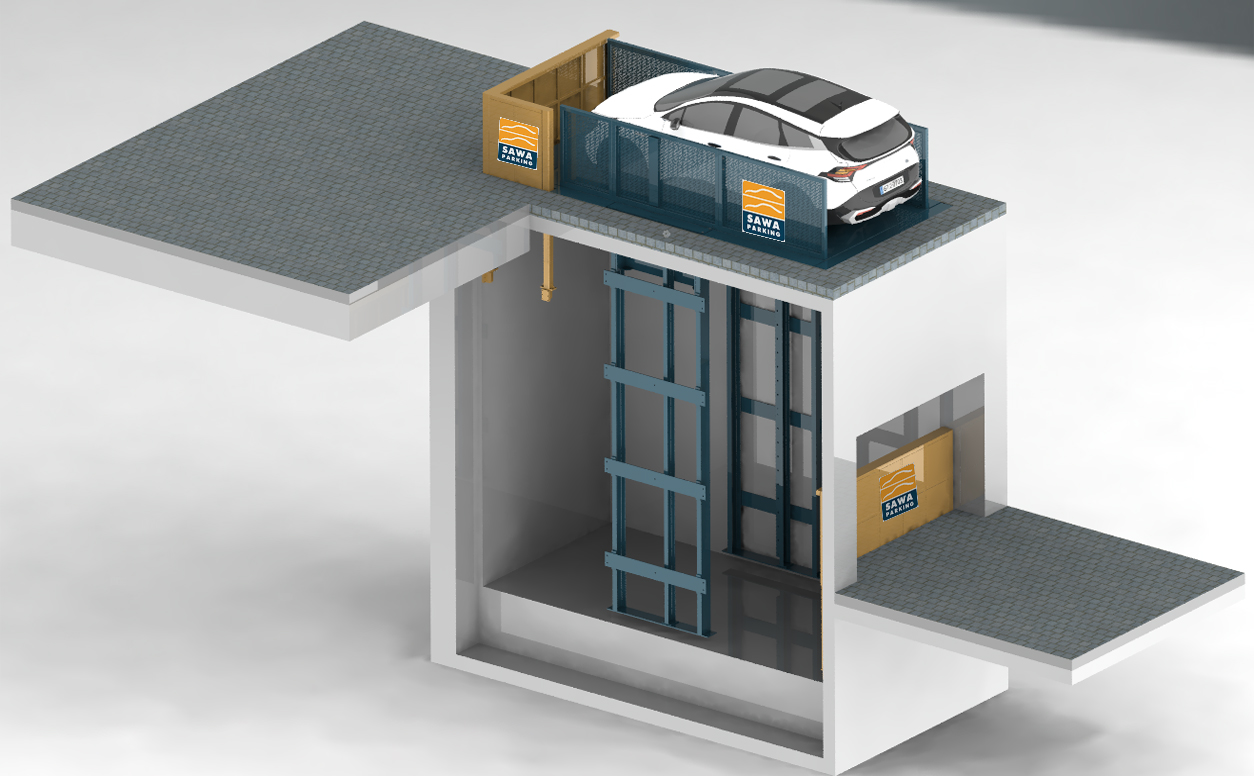

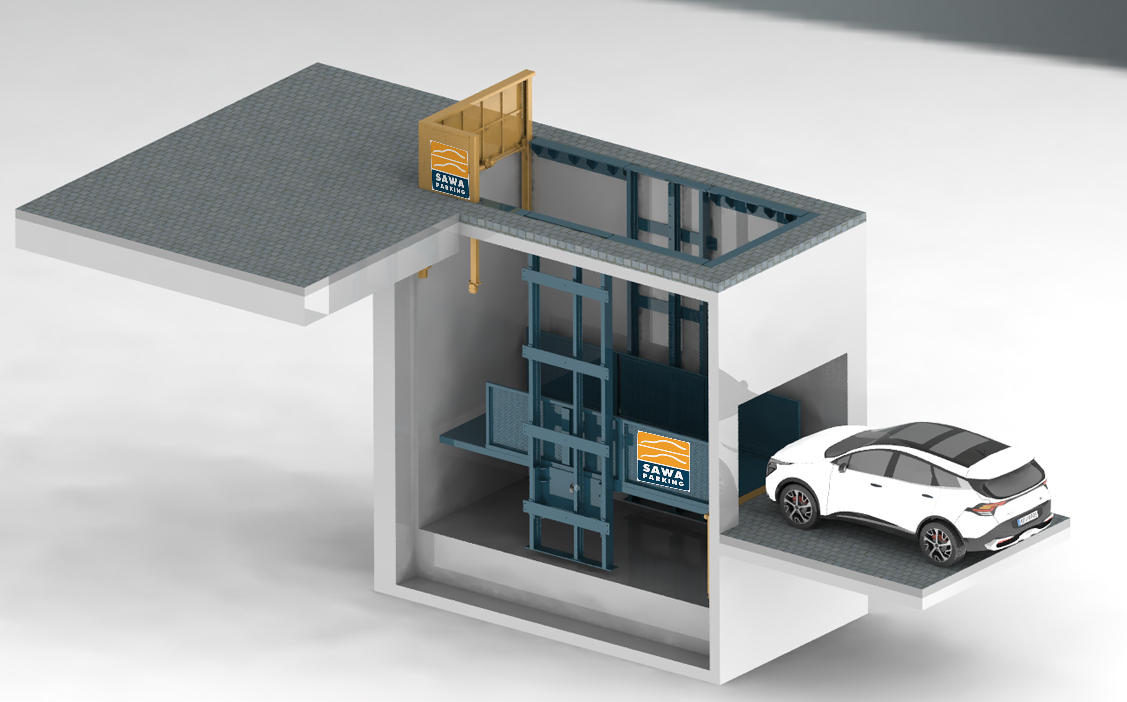

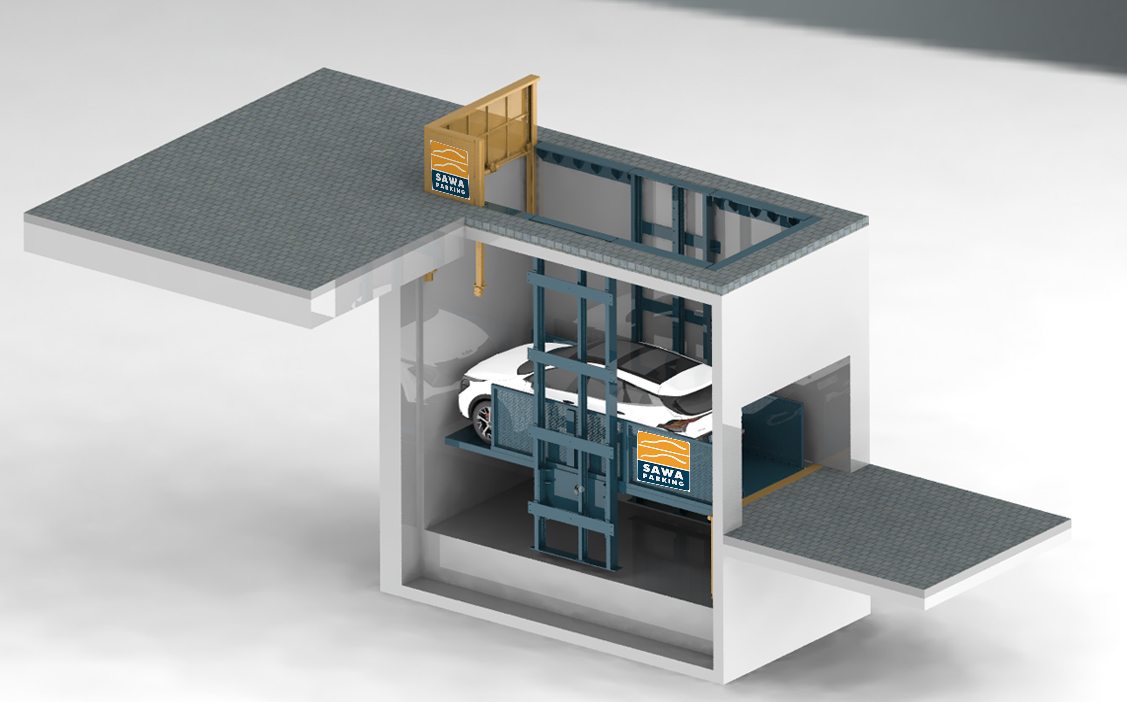

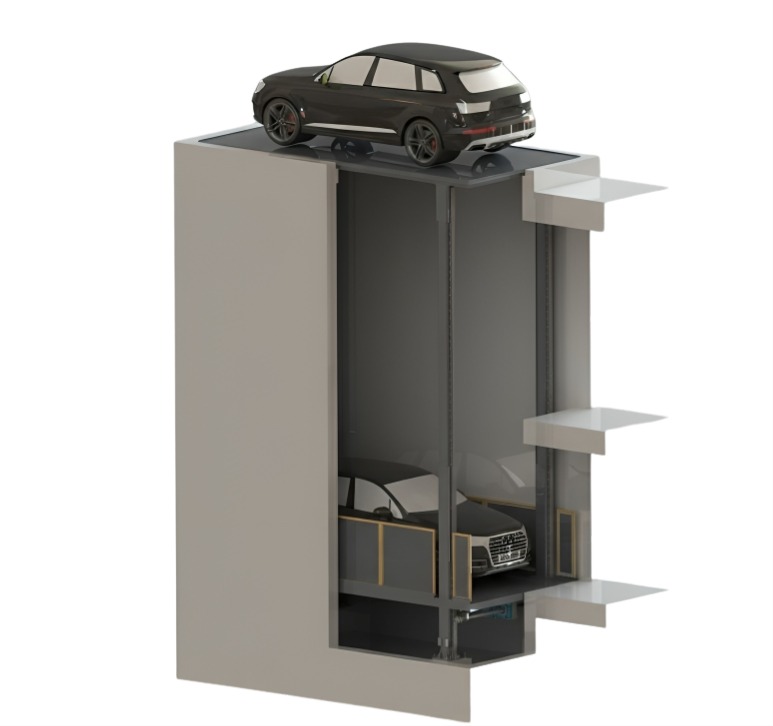

Product Gallary
